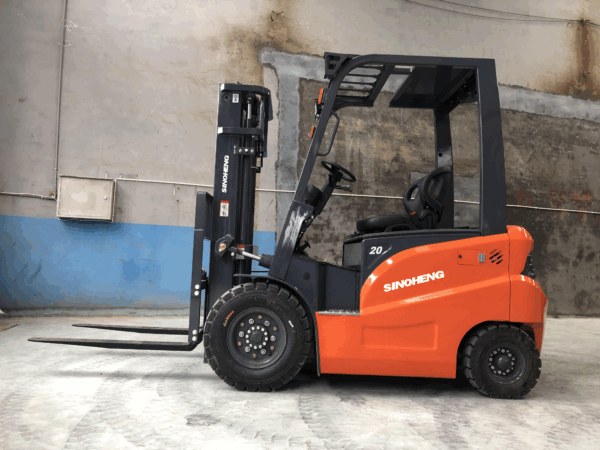

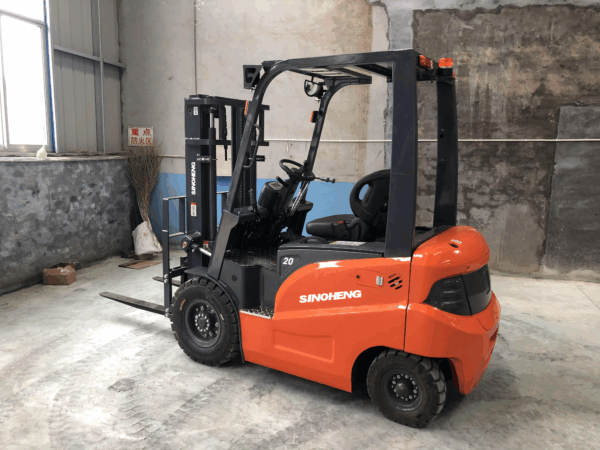

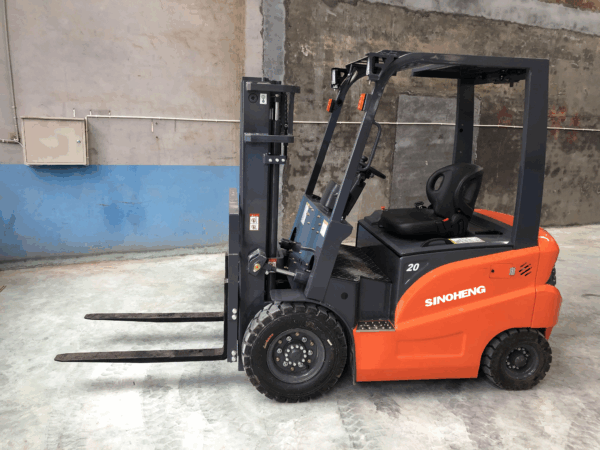

Electric Forklift 20

  • Load capacity: 2000kg
  • Maximum driving speed: Depending on the model and configuration
  • Battery type: High-performance lead-acid battery or lithium battery
  • Charging mode: Intelligent charging system, supporting fast charging and slow charging modes
  • Tyre type: High-strength solid tyre, wear-resistant and non-slip

GET INSTANT QUOTE

    FEATURES

    Product Details

    Description

    The Electric Forklift 20 is an electric forklift designed to meet the efficient and environmentally friendly handling needs of the modern warehousing and logistics industry. With a load capacity of 2 tons, it is suitable for a variety of material handling scenarios, while its electric drive system ensures low energy consumption and zero emissions.

    Energy efficiency

    Advanced electric drive technology enables efficient energy conversion, ensuring superior energy efficiency during handling operations while also reducing operating costs.

    Environmental zero emissions

    As an electric forklift, the Electric Forklift 20 produces no harmful gas emissions during operation, fully meeting environmental regulations and providing a clean working environment for warehouses and factories.

    Stable handling

    The optimized chassis design and advanced hydraulic system ensure that the forklift operates smoothly, minimizing cargo damage and reducing operational risks.

    User-friendly design

    The cab is spacious and comfortable, with a simple and intuitive operation interface that allows the operator to quickly get started and efficiently complete tasks. Additionally, it is equipped with an intelligent control system for precise handling.

    Easy maintenance

    The electric drive system features a simple structure that is easy to maintain. Additionally, the product is equipped with a fault diagnosis system, enabling users to quickly identify and resolve any issues.

    In summary, the Electric Forklift 20 is the perfect choice for material handling in the modern warehousing and logistics industry, thanks to its high efficiency, energy savings, environmentally friendly zero emissions, stable handling, and user-friendly design. We warmly invite you to learn more about this product and look forward to establishing a long-term and stable relationship with you.

    Specifications

       Model CPD20G
    Power type Battery
     Rated load KG 2000
     Load center distance mm 500
     Driving type Seat
     Length  With fork   L1    mm 3527
       Without fork  L2 2457
          Whole Width    B 1180
    Height  Height no lifting frame       H1 2015
        Top frame height                H2 2195
       Max Height     working         H3 4005
     Distance from seat to top light   L3 972
       Wheel  base       L4 1550
       Front overhang       Y 475
        Back overhang    L5 438
      Front wheel tread    R 968
        Back wheel tread    P 954
      Min Floor clearance     F 115
      Max lifting height       H 3055
      Free lifting height      H4 145
      Fork  changing        S 250~1000
      Min Turning radius     WA 2200
     Min driiving width       RA 3975
      Frame angle   a/β ° 6/12
    Max lifting speed without goods mm/s 450
    Max lifting speed with full  goods 330
    Max speed without goods Km/h 16.5
    Max speed with full goods 15
     Max climbing angle ≤15
     Whole weight Kg 3960
    Driving Wheel 2/2
    Type model Solid tyre
    Front Tyre 23×9-10
    Rear Tyre 18×7-8
    Driving brake Foot brake
    Brake  type M-Hand
     Battery Volt/ capacity V/Ah 48/500
    Driving motor power Kw 11
     pump power 12
