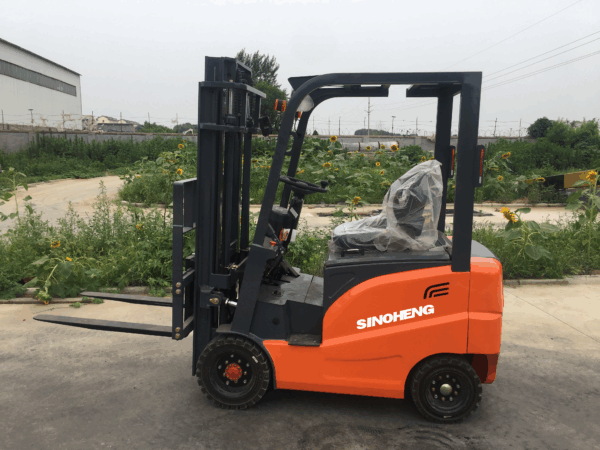

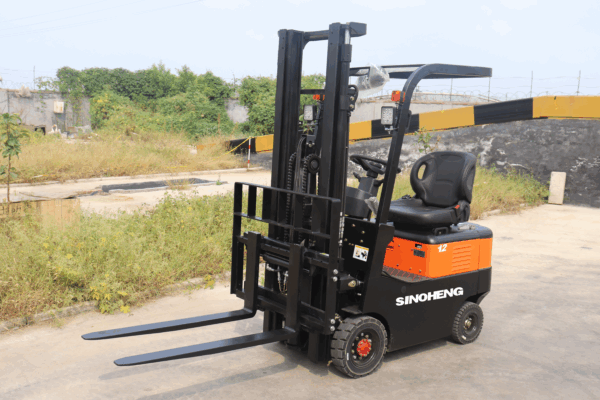

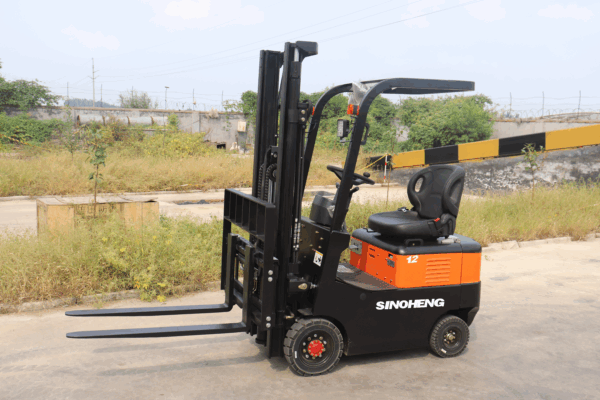

Electric Forklift 12

  • Carrying capacity: 12 tons
  • Drive mode: electric
  • Transmission mode: motor drive
  • Battery Type: High-performance lithium battery (or other type of battery)
  • Speed: Optional according to configuration

GET INSTANT QUOTE

    FEATURES

    Product Details

    Description

    The Electric Forklift 12 is an efficient, environmentally friendly electric forklift designed for handling and stacking materials weighing up to 12 tonnes. Using advanced electric drive technology, this forklift truck has become an indispensable part of modern logistics, warehousing and manufacturing with its superior performance, reliability and ease of operation.

    High efficiency

    The Electric Forklift 12 has a strong load carrying capacity and excellent stability, which can easily handle a variety of medium and heavy material handling tasks.

    Environmental protection and energy saving

    The use of advanced electric drive system to achieve zero emissions, low noise operation, not only in line with environmental requirements, but also reduce energy consumption.

    Advanced control

    equipped with humanized operation interface and precise control system, making the operation easier and safer. At the same time, the efficient battery management system ensures the continuous and stable operation of the forklift.

    Safe and reliable

    adopt multiple safety protection devices, such as emergency braking, overload protection, etc., to ensure the safety of operators and goods.

    Easy maintenance

    The electric forklift is compact, easy to maintain and maintain, and reduces the cost of use.

    Electric Forklift 12 offers the following significant advantages in its category:

    Efficient capacity

    Strong carrying capacity and excellent stability, can meet the handling needs of various medium and heavy materials.

    Environmental protection and energy saving

    electric drive system to achieve zero emissions, low noise operation, in line with environmental requirements, reduce energy consumption.

    Advanced control:

    humanized operation interface and accurate control system make the operation more simple, safe and improve work efficiency.
    Customized service: We can customize the forklift according to the specific needs of customers, including the adjustment of bearing capacity, lifting height, driving speed and other parameters to meet the needs of different occasions.

    In summary, the Electric Forklift 12 is an efficient, environmentally friendly, safe and reliable electric forklift for a variety of medium and heavy material handling scenarios. We are committed to providing our customers with quality products and services to help them achieve more efficient and environmentally friendly material handling solutions.

    Specifications

          Model CPD12
     Power type Battery
     Rated load 1200kg
    Load center distance 500mm
    Driving type seat
    Length    With fork 2672mm
     Without fork 1732mm
          Whole Width 940mm
    Height Mast lowered height 2040mm
    Overhead guard height   1950mm
     Max working Height    3820mm
    Distance from seat to top light 970mm
        Wheel  base 1020mm
     Front overhang 327mm
          Back overhang 313mm
     Front wheel tread 840mm
       Back wheel tread 741mm
    Min Floor clearance 90mm
    Max lifting height 3000mm
    Free lifting height 0mm
    Fork  changing              820/190
    Min Turning radius 1800
    Min Right angle aisle width       2000
    Tilt angle  a/β 6°/12°
    Max lifting speed without goods 250mm/s
    Max lifting speed with full  goods 220mm/s
    Max speed without goods 12km/h
    Max speed with full goods 11km/h
    Max climbing angle ≤10
    Whole weight 1720kg
    Driving Wheel 2x/2
    Tyre model Solid tyre
    Front Tyre 15×4 1/2-8
    Rear Tyre 3.50-5
    Hand Brake Hydraulic Pedal
    Brake  type M-Hand
     Battery Volt/ capacity 2X24V/160
     Driving motor power 4.0AC
     pump power 4.0DC

    Vedio

    Certificate

    Custom Containers FAQs

    Qigao is a welder and flame cutting machines leader in China. We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

    These oxy-fuel flame gas cutting machine are well used in shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.

    Different sizes of the cutting tips, different cutting thickness. First confirm the needed cutting thickness, then select the corresponding cutting nozzles. See below detailed parameter of G02 (acetylene)and G03 (propane)tips.

    TypeNo.Gas cutting
    aperture(mm)
    Cutting
    Thickness(mm)
    Cutting speed
    (mm/min)
    Oxygen
    pressure(Mpa)
    Acetylene
    pressure(Mpa)
    Acetylene
    GO₂
    #000.85-10600-4500.2-0.3>0.03
    #01.010-20480-3800.2-0.30.03
    #11.220-30400-3200.25-0.350.03
    #21.430-50350-2800.25-0.350.03
    #31.650-70300-2400.3-0.40.04
    #41.870-90260-2000.3-0.40.04
    #5290-120210-1700.4-0.60.04
    #62.4120-160180-1400.5-0.80.05
    #72.8160-200150-1100.6-0.90.05
    #83.2200-28090-600.6-1.00.05
    #93.6270-35090-600.7-1.10.05
    #104350-40070-500.7-1.20.06



    Type

    No.

    Gas cutting
    aperture(mm)

    Cutting
    thickness(mm)

    Cutting speed
    (mm/min)

    Oxygen
    pressure(Mpa)

    Acetylene
    pressure(Mpa)

    Propane
    GO3

    #0

    0.7

    5-10

    800-450

    0.2-0.3

    >0.03

    #1

    0.9

    10-20

    480-300

    0.2-0.3

    0.03

    #2

    1.2

    20-35

    400-320

    0.3-0.4

    0.03

    #3

    1.5

    35-60

    350-280

    0.3-0.4

    0.03

    #4

    1.8

    60-90

    300-240

    0.4-0.6

    0.04



    #5

    2.1

    90-130

    260-200

    0.4-0.6

    0.04

    #6

    2.5

    130-180

    220-180

    0.4-0.6

    0.04

    #7

    2.7

    180-250

    200-160

    0.5-0.7

    0.05

    #8

    3.1

    250-330

    180-140

    0.5-0.7

    0.05

    #9

    3.5

    330-380

    130-90

    0.6-0.8

    2.05

    #10

    4.0

    380-450

    90-50

    0.6-0.8

    0.05

    Yes, they can. Our standard machines are with the circling-parts to do extra circling cutting, including their main straight-line cutting function. What’s more, the plasma cutting also is available.

    The main differences between CG1-30A and CG1-30B is the working rail. 30A is with “H” rail, 30B is with hole rail. You can select the wanted rail before confirm the order. The rail is different, the price will be different.

    MIG welders, TIG welders, MMA welders, hand spot welding machines, welding carriage and portable spot welding machines, stud welding machines and so on.

    What is the warranty time for welding and cutting machines.
