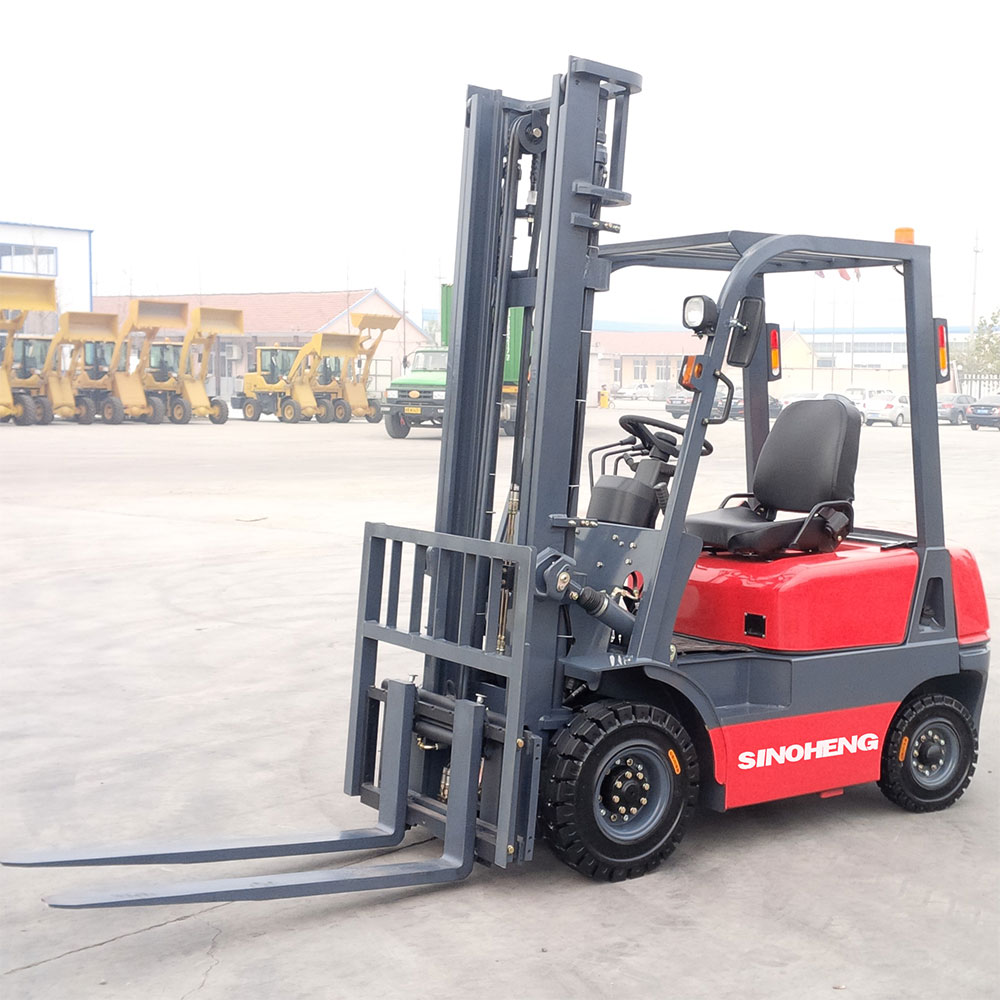

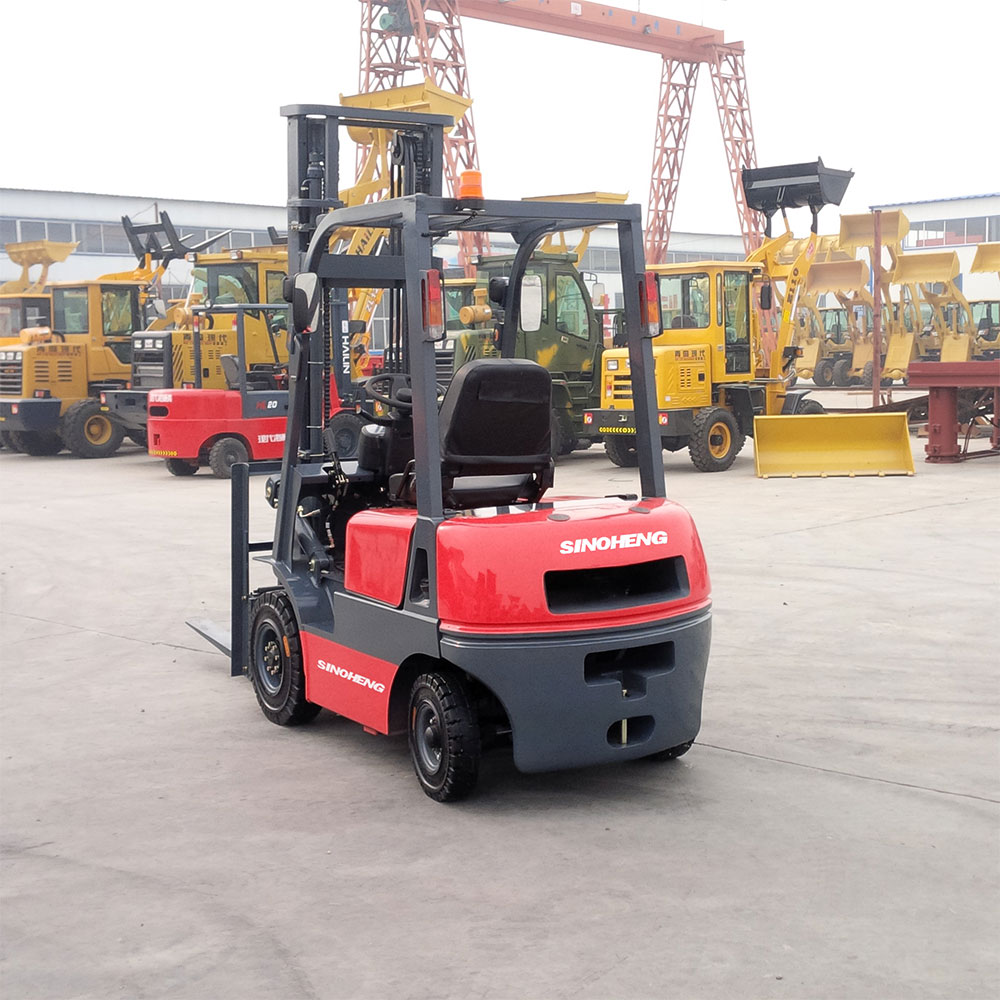

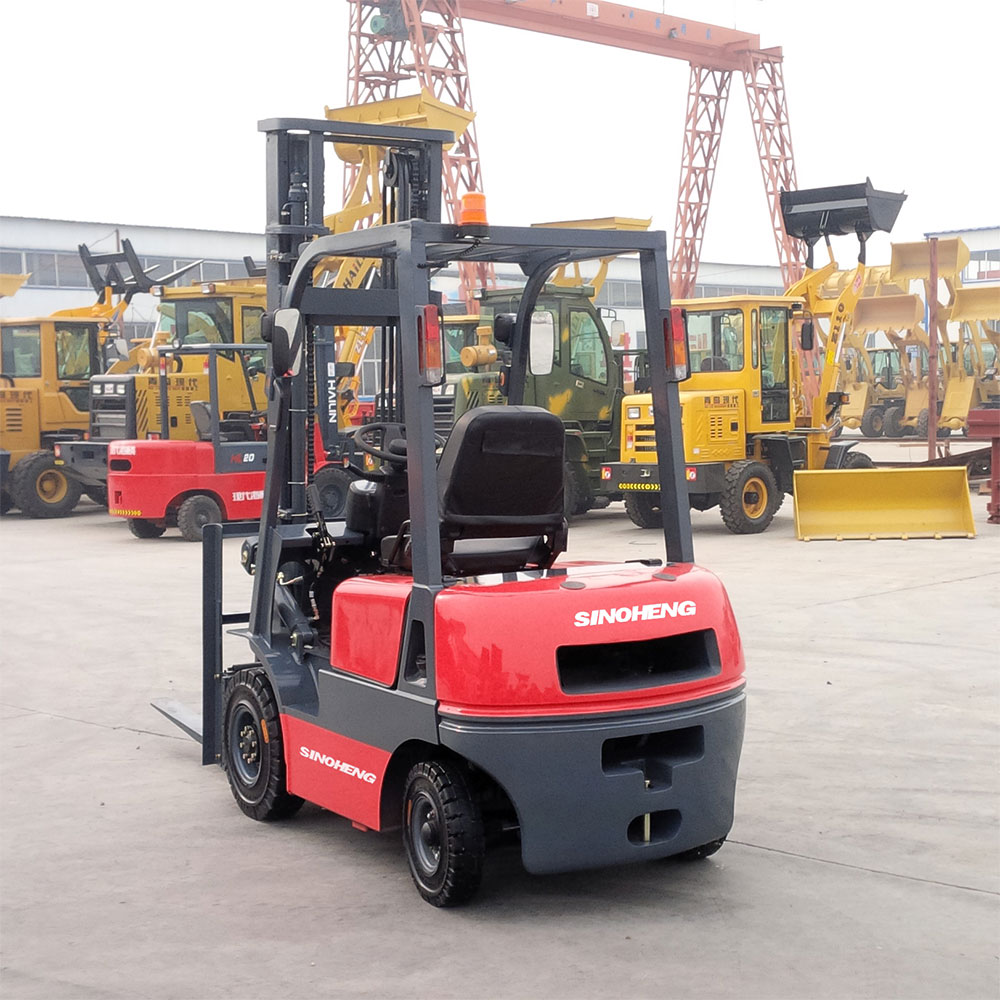

Diesel Forklift 1.5tons

  • Load capacity: 1500kg
  • Lifting height: Different specifications can be customized according to customer needs
  • Engine power: Efficient and energy-saving diesel engine, the specific power depends on the model
  • Fuel type: Diesel
  • Tyre type: Solid tyre with wear and skid resistance
Category

GET INSTANT QUOTE

    FEATURES

    Product Details

    Description

    This 1.5 ton diesel forklift is an efficient and practical material handling device designed for light to moderate loads. It uses diesel as a power source, combined with advanced technology and sophisticated manufacturing process, to provide users with stable and reliable performance.

    Load and power

    With a load capacity of 1500 kg, the forklift can easily handle the material handling needs of warehouses, factories, logistics centers and other places. The diesel engine provides the truck with a strong power output, ensuring high efficiency in all operating environments.

    Operating performance

    This forklift has excellent operational performance, whether it is lifting, descending or moving, it can achieve accurate and smooth control. Its compact body design allows the forklift to operate flexibly in narrow Spaces and adapt to a variety of complex working environments. At the same time, its efficient climbing ability and good stability also ensure the stable operation of the forklift in various terrains and conditions.

    Driving experience

    The design of the truck cab is comfortable and the interface is intuitive and easy to use, so that the operator can quickly pick up and enjoy the driving experience. In addition, the vehicle is equipped with a number of safety devices, such as emergency braking system, reverse alarm, etc., to ensure the safety of the operator.

    Care and maintenance

    Maintenance of this forklift is relatively simple, and its modular design makes parts replacement and repair easy and fast. At the same time, high-quality parts and strict production processes also ensure the durability of the forklift and reduce maintenance costs.


    Energy saving and environmental protection

    In terms of environmental protection, this forklift adopts advanced fuel technology and emission control devices, effectively reducing fuel consumption and exhaust gas emissions, in line with modern environmental requirements.

    To sum up, this 1.5 ton diesel forklift is ideal for material handling due to its efficiency, stability, flexibility, comfort and environmental friendliness. Whether it is for daily handling tasks or temporary operation needs, it can provide users with an excellent handling experience.

    Specifications

    Specification CPC15
    Fuel model diesel
    Load capacity kg 1500
    3 Load center mm 500
    4 Lift height mm 3000
    5 Full free lift height mm 100
    6 Fork dimension mm 920×100×35
    7 Mast tilting angle Deg. 6/12
    Min.turning radius mm 1955
    Groud clearance mm 110
    10 Overhead guard height mm 2040
    11 Front overhang mm 425
    12 Max travel speed km/h 13.5
    13 Max lift speed mm/s 590
    14 Max.traction power KN 12.3
    15 Max. gradeability % 20
    Total length with fork mm 3175
    17 Total length without fork mm 2255
    18 Total width mm 1070
    19 Mast extended height mm 4030
    20 Mast lowered height mm 1995
    21 Tyres Front 6.50-10-10PR
    22 Type Rear 5.00-8-8PR
    23 Wheelbase mm 1410
    24 Tread mm 890/920
    25 Service weight Kg 2660
    26 Battery V/Ah 12/80
    27 Engine model 4D27G31
    28 Engine power kw/r.p.m 32
    29 Transmission Mechanical/hydraulic
    30 Work press Mpa 18.5

    Vedio

    Certificate

    Custom Containers FAQs

    Qigao is a welder and flame cutting machines leader in China. We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

    These oxy-fuel flame gas cutting machine are well used in shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.

    Different sizes of the cutting tips, different cutting thickness. First confirm the needed cutting thickness, then select the corresponding cutting nozzles. See below detailed parameter of G02 (acetylene)and G03 (propane)tips.

    TypeNo.Gas cutting
    aperture(mm)
    Cutting
    Thickness(mm)
    Cutting speed
    (mm/min)
    Oxygen
    pressure(Mpa)
    Acetylene
    pressure(Mpa)
    Acetylene
    GO₂
    #000.85-10600-4500.2-0.3>0.03
    #01.010-20480-3800.2-0.30.03
    #11.220-30400-3200.25-0.350.03
    #21.430-50350-2800.25-0.350.03
    #31.650-70300-2400.3-0.40.04
    #41.870-90260-2000.3-0.40.04
    #5290-120210-1700.4-0.60.04
    #62.4120-160180-1400.5-0.80.05
    #72.8160-200150-1100.6-0.90.05
    #83.2200-28090-600.6-1.00.05
    #93.6270-35090-600.7-1.10.05
    #104350-40070-500.7-1.20.06



    Type

    No.

    Gas cutting
    aperture(mm)

    Cutting
    thickness(mm)

    Cutting speed
    (mm/min)

    Oxygen
    pressure(Mpa)

    Acetylene
    pressure(Mpa)

    Propane
    GO3

    #0

    0.7

    5-10

    800-450

    0.2-0.3

    >0.03

    #1

    0.9

    10-20

    480-300

    0.2-0.3

    0.03

    #2

    1.2

    20-35

    400-320

    0.3-0.4

    0.03

    #3

    1.5

    35-60

    350-280

    0.3-0.4

    0.03

    #4

    1.8

    60-90

    300-240

    0.4-0.6

    0.04



    #5

    2.1

    90-130

    260-200

    0.4-0.6

    0.04

    #6

    2.5

    130-180

    220-180

    0.4-0.6

    0.04

    #7

    2.7

    180-250

    200-160

    0.5-0.7

    0.05

    #8

    3.1

    250-330

    180-140

    0.5-0.7

    0.05

    #9

    3.5

    330-380

    130-90

    0.6-0.8

    2.05

    #10

    4.0

    380-450

    90-50

    0.6-0.8

    0.05

    Yes, they can. Our standard machines are with the circling-parts to do extra circling cutting, including their main straight-line cutting function. What’s more, the plasma cutting also is available.

    The main differences between CG1-30A and CG1-30B is the working rail. 30A is with “H” rail, 30B is with hole rail. You can select the wanted rail before confirm the order. The rail is different, the price will be different.

    MIG welders, TIG welders, MMA welders, hand spot welding machines, welding carriage and portable spot welding machines, stud welding machines and so on.

    What is the warranty time for welding and cutting machines.
