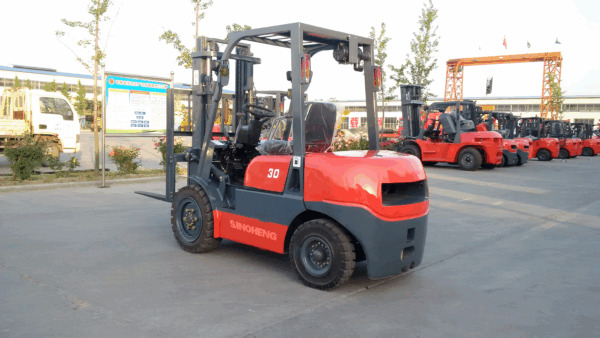

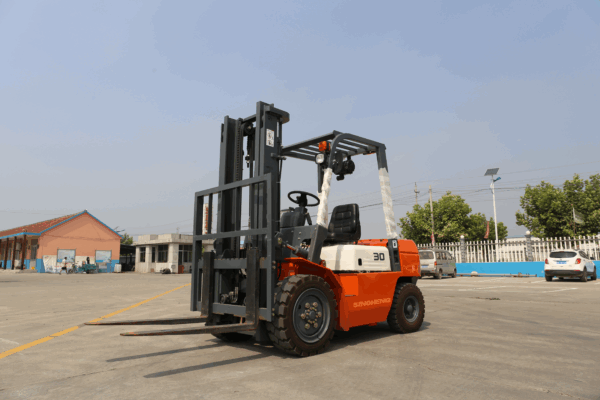

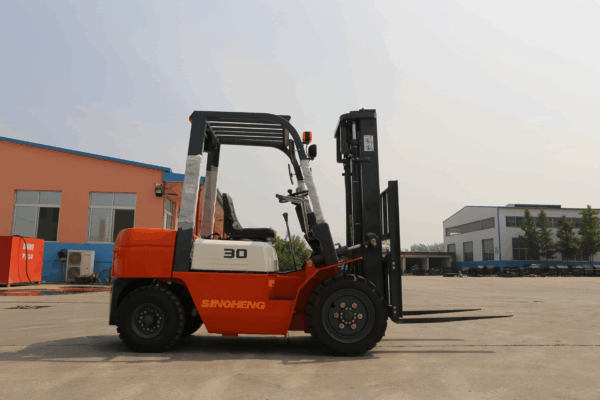

Diesel Forklift 3.0tons

  • Load capacity: 3000kg
  • Lifting height: Different heights can be selected according to demand
  • Engine power: depends on the specific model
  • Fuel type: Diesel
  • Tyre type: Solid tyre, wear resistant and durable
Category

GET INSTANT QUOTE

    FEATURES

    Product Details

    Description

    The Diesel Forklift 3.0tons is an efficient and stable diesel forklift for material handling in a variety of industrial and commercial locations. With its excellent performance, excellent stability and reasonable price, the product has won the favor of the majority of users.

    Powerful power

    Equipped with a highly efficient diesel engine, it provides a stable and powerful power output, ensuring that it can easily cope in a variety of working environments.

    High efficiency and energy saving

    Using advanced fuel injection technology and energy saving design, effectively reduce fuel consumption and reduce operating costs.

    Stable control

    Equipped with precision hydraulic system and stable chassis structure, so that the forklift in the handling process to maintain stability, improve work efficiency.

    Comfort and safety

    The cab design is reasonable, the operation is convenient, equipped with a number of safety protection measures, such as non-slip foot pedals, safety protection frame, etc., to ensure the safety of the operator.
    Diesel Forklift 3.0tons is suitable for material handling in warehouses, docks, factories and other places, and can be widely used in logistics, manufacturing and other fields.
    In short, the Diesel Forklift 3.0tons is an excellent and reliable diesel forklift for your material handling work. Please feel free to contact us for more detailed information about this product.

    Specifications

    Specification CPC30
    1 Fuel model diesel
    2 Load capacity kg 3000
    3 Load center mm 500
    4 Lift height mm 3000
    5 Full free lift height mm 100
    6 Fork dimension mm 1070×125×45
    7 Mast tilting angle Deg. 6/12
    8 Min.turning radius mm 2400
    9 Groud clearance mm 135
    10 Overhead guard height mm 2165
    11 Front overhang mm 495
    12 Max travel speed km/h 19
    13 Max lift speed mm/s 480
    14 Max.traction power KN 13.5
    15 Max. gradeability % 20
    16 Total length with fork mm 3820
    17 Total length without fork mm 2750
    18 Total width mm 1225
    19 Mast extended height mm 4265
    20 Mast lowered height mm 2060
    21 Tyres Front 28×9-15-12PR
    22 Type Rear 6.50-10-10PR
    23 Wheelbase mm 1700
    24 Tread mm 1000/970
    25 Service weight Kg 4350
    26 Battery V/Ah 12/80
    27 Engine model new diesel 4D27G31
    28 Engine power kw/r.p.m 36.8
    29 Transmission Mechanical/hydraulic
    30 Work press Mpa 18.5

    Vedio

    Certificate

    Custom Containers FAQs

    Qigao is a welder and flame cutting machines leader in China. We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

    These oxy-fuel flame gas cutting machine are well used in shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.

    Different sizes of the cutting tips, different cutting thickness. First confirm the needed cutting thickness, then select the corresponding cutting nozzles. See below detailed parameter of G02 (acetylene)and G03 (propane)tips.

    TypeNo.Gas cutting
    aperture(mm)
    Cutting
    Thickness(mm)
    Cutting speed
    (mm/min)
    Oxygen
    pressure(Mpa)
    Acetylene
    pressure(Mpa)
    Acetylene
    GO₂
    #000.85-10600-4500.2-0.3>0.03
    #01.010-20480-3800.2-0.30.03
    #11.220-30400-3200.25-0.350.03
    #21.430-50350-2800.25-0.350.03
    #31.650-70300-2400.3-0.40.04
    #41.870-90260-2000.3-0.40.04
    #5290-120210-1700.4-0.60.04
    #62.4120-160180-1400.5-0.80.05
    #72.8160-200150-1100.6-0.90.05
    #83.2200-28090-600.6-1.00.05
    #93.6270-35090-600.7-1.10.05
    #104350-40070-500.7-1.20.06



    Type

    No.

    Gas cutting
    aperture(mm)

    Cutting
    thickness(mm)

    Cutting speed
    (mm/min)

    Oxygen
    pressure(Mpa)

    Acetylene
    pressure(Mpa)

    Propane
    GO3

    #0

    0.7

    5-10

    800-450

    0.2-0.3

    >0.03

    #1

    0.9

    10-20

    480-300

    0.2-0.3

    0.03

    #2

    1.2

    20-35

    400-320

    0.3-0.4

    0.03

    #3

    1.5

    35-60

    350-280

    0.3-0.4

    0.03

    #4

    1.8

    60-90

    300-240

    0.4-0.6

    0.04



    #5

    2.1

    90-130

    260-200

    0.4-0.6

    0.04

    #6

    2.5

    130-180

    220-180

    0.4-0.6

    0.04

    #7

    2.7

    180-250

    200-160

    0.5-0.7

    0.05

    #8

    3.1

    250-330

    180-140

    0.5-0.7

    0.05

    #9

    3.5

    330-380

    130-90

    0.6-0.8

    2.05

    #10

    4.0

    380-450

    90-50

    0.6-0.8

    0.05

    Yes, they can. Our standard machines are with the circling-parts to do extra circling cutting, including their main straight-line cutting function. What’s more, the plasma cutting also is available.

    The main differences between CG1-30A and CG1-30B is the working rail. 30A is with “H” rail, 30B is with hole rail. You can select the wanted rail before confirm the order. The rail is different, the price will be different.

    MIG welders, TIG welders, MMA welders, hand spot welding machines, welding carriage and portable spot welding machines, stud welding machines and so on.

    What is the warranty time for welding and cutting machines.
