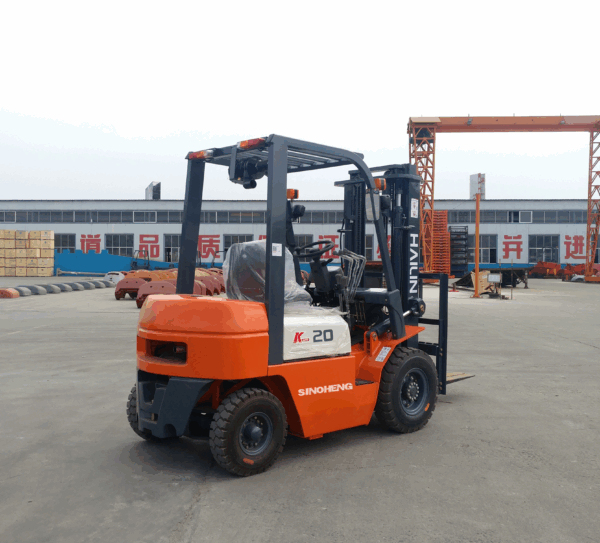

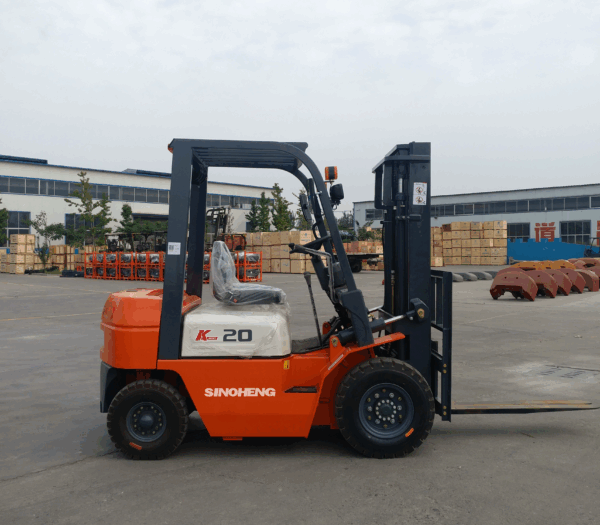

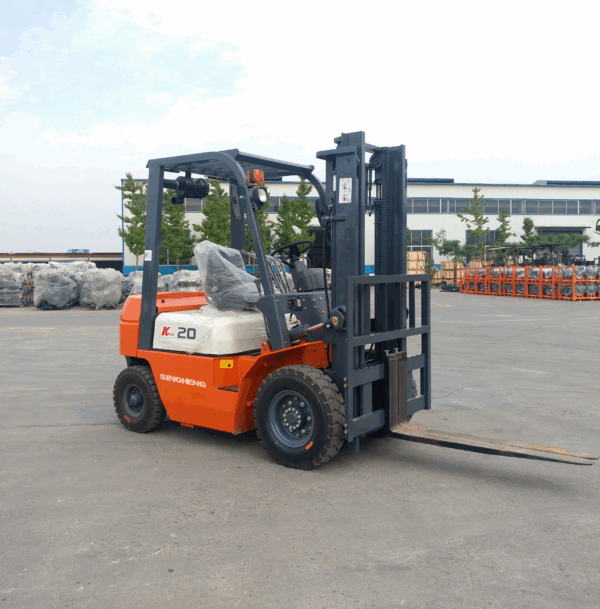

Diesel Forklift 2.0tons



  • Load capacity: 2000kg
  • Maximum driving speed: Depending on the model and configuration
  • Lifting height: can be customized according to customer needs
  • Fuel type: Diesel



Category

GET INSTANT QUOTE

    FEATURES

    Product Details

    Description

    The Diesel Forklift 2.0tons is a diesel-powered forklift for a wide range of industrial and commercial locations. Its load capacity of 2 tons makes it excellent for handling medium weight materials and cargo. The truck combines an efficient power system with stable handling performance to provide users with an efficient and reliable handling solution.

    Efficient power

    Equipped with an advanced diesel engine, it provides strong and stable power output to ensure efficient operation in a variety of handling tasks.

    Economical and practical

    The high fuel efficiency of the diesel engine enables the forklift to maintain low operating costs during long, intensive operations.

    Stable handling

    The robust body structure and optimized chassis design ensure that the forklift remains stable during handling, reducing cargo damage and operational risks.

    Humanized design

    The cab is spacious and comfortable, and the operation handle and button layout are reasonable, so that the operator can easily get started and improve the work efficiency.

    Strong adaptability

    Different fork lengths and lifting heights can be customized according to customer needs to meet the needs of different handling scenarios.

    In summary, Diesel Forklift 2.0tons with its efficient power, economical utility, stable handling and user-friendly design advantages, is the ideal choice for handling medium weight materials and cargo. We sincerely invite you to learn more about this product and look forward to building a long-term and stable relationship with you.

    Specifications



    Specification CPC20
    1 Fuel model diesel
    2 Load capacity kg 2000
    3 Load center mm 500
    4 Lift height mm 3000
    5 Full free lift height mm 100
    6 Fork dimension mm 1070×122×40
    7 Mast tilting angle Deg. 6/12
    8 Min.turning radius mm 2220
    9 Groud clearance mm 120
    10 Overhead guard height mm 2140
    11 Front overhang mm 448
    12 Max travel speed km/h 19
    13 Max lift speed mm/s 550
    14 Max.traction power KN 12.3
    15 Max. gradeability % 20
    16 Total length with fork mm 3523
    17 Total length without fork mm 2453
    18 Total width mm 1160
    19 Mast extended height mm 4220
    20 Mast lowered height mm 2060
    21 Tyres Front 7.00-12-12PR
    22 Type Rear 6.00-9-10PR
    23 Wheelbase mm 1600
    24 Tread mm 970/970
    25 Service weight Kg 3200
    26 Battery V/Ah 12/80
    27 Engine model new diesel4D27G31
    28 Engine power kw/r.p.m 36.8
    29 Transmission Mechanical/hydraulic diesel
    30 Work press Mpa 18.5

    Vedio

    Certificate

    Custom Containers FAQs

    Qigao is a welder and flame cutting machines leader in China. We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

    These oxy-fuel flame gas cutting machine are well used in shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.

    Different sizes of the cutting tips, different cutting thickness. First confirm the needed cutting thickness, then select the corresponding cutting nozzles. See below detailed parameter of G02 (acetylene)and G03 (propane)tips.

    TypeNo.Gas cutting
    aperture(mm)
    Cutting
    Thickness(mm)
    Cutting speed
    (mm/min)
    Oxygen
    pressure(Mpa)
    Acetylene
    pressure(Mpa)
    Acetylene
    GO₂
    #000.85-10600-4500.2-0.3>0.03
    #01.010-20480-3800.2-0.30.03
    #11.220-30400-3200.25-0.350.03
    #21.430-50350-2800.25-0.350.03
    #31.650-70300-2400.3-0.40.04
    #41.870-90260-2000.3-0.40.04
    #5290-120210-1700.4-0.60.04
    #62.4120-160180-1400.5-0.80.05
    #72.8160-200150-1100.6-0.90.05
    #83.2200-28090-600.6-1.00.05
    #93.6270-35090-600.7-1.10.05
    #104350-40070-500.7-1.20.06



    Type

    No.

    Gas cutting
    aperture(mm)

    Cutting
    thickness(mm)

    Cutting speed
    (mm/min)

    Oxygen
    pressure(Mpa)

    Acetylene
    pressure(Mpa)

    Propane
    GO3

    #0

    0.7

    5-10

    800-450

    0.2-0.3

    >0.03

    #1

    0.9

    10-20

    480-300

    0.2-0.3

    0.03

    #2

    1.2

    20-35

    400-320

    0.3-0.4

    0.03

    #3

    1.5

    35-60

    350-280

    0.3-0.4

    0.03

    #4

    1.8

    60-90

    300-240

    0.4-0.6

    0.04



    #5

    2.1

    90-130

    260-200

    0.4-0.6

    0.04

    #6

    2.5

    130-180

    220-180

    0.4-0.6

    0.04

    #7

    2.7

    180-250

    200-160

    0.5-0.7

    0.05

    #8

    3.1

    250-330

    180-140

    0.5-0.7

    0.05

    #9

    3.5

    330-380

    130-90

    0.6-0.8

    2.05

    #10

    4.0

    380-450

    90-50

    0.6-0.8

    0.05

    Yes, they can. Our standard machines are with the circling-parts to do extra circling cutting, including their main straight-line cutting function. What’s more, the plasma cutting also is available.

    The main differences between CG1-30A and CG1-30B is the working rail. 30A is with “H” rail, 30B is with hole rail. You can select the wanted rail before confirm the order. The rail is different, the price will be different.

    MIG welders, TIG welders, MMA welders, hand spot welding machines, welding carriage and portable spot welding machines, stud welding machines and so on.

    What is the warranty time for welding and cutting machines.
