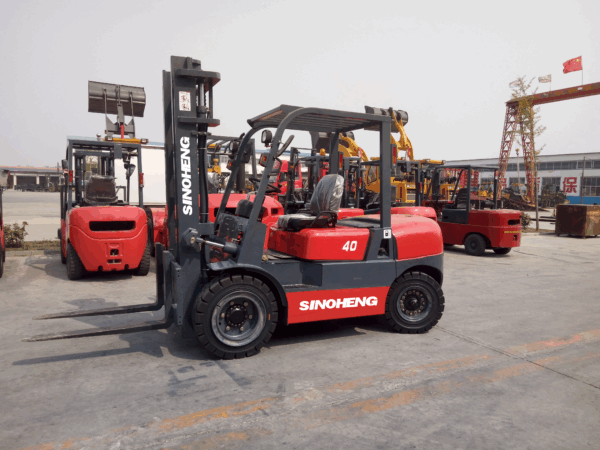

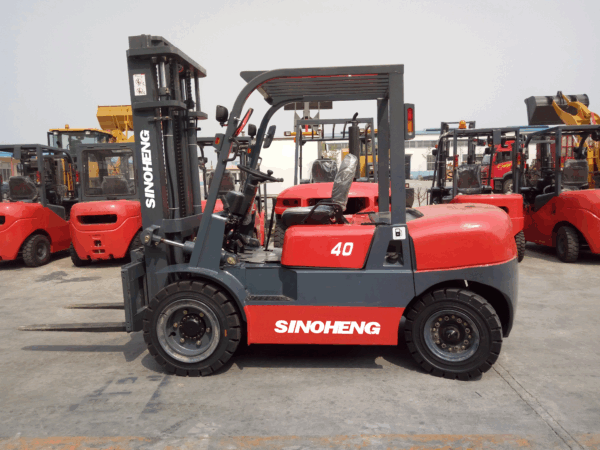

Diesel Forklift 4.0tons

  • Carrying capacity: 4.0tons
  • Engine type: Diesel engine
  • Maximum lifting height: depends on the specific model
  • Forward/backward speed: depends on the model
  • Tire type: Solid tires, wear resistant and suitable for a variety of terrain
Category

GET INSTANT QUOTE

    FEATURES

    Product Details

    Description

    Diesel Forklift 4.0tons With its 4.0tons capacity, Diesel Forklift 4.0tons is the ideal solution to heavy lifting challenges. The truck is equipped with a high-performance diesel engine, which can easily cope with a variety of complex handling tasks and improve work efficiency.

    Strong load capacity

    With a load capacity of 4.0 tons, this forklift can easily handle large loads and heavy equipment, and is stable and reliable.

    Efficient diesel engine

    The use of advanced diesel engine technology to provide strong power output for forklifts to ensure efficient and stable work under various working conditions.

    Excellent handling performance:

    Flexible operation, precise steering system and responsive control system make it easy for the operator to steer the truck for a variety of operations.

    Excellent safety performance

    Equipped with multiple safety protection systems, such as emergency braking, anti-rollover, etc., to ensure the safety of operators and cargo.

    Comfortable operating environment

    The spacious cab, equipped with comfortable seats and user-friendly instrument table, provides a comfortable working environment for the operator and reduces work fatigue.
    Diesel Forklift 4.0tons is widely used in all kinds of warehouses, freight yards, docks and other places, suitable for bulk cargo handling, stacking, loading and unloading operations. Its strong carrying capacity and excellent handling performance make it an indispensable and important equipment in logistics, manufacturing and other fields.

    In short, the Diesel Forklift 4.0tons, with its powerful load carrying capacity, efficient diesel engine and excellent handling performance, provides a strong support for all types of handling jobs. Whether it is a large logistics company or a small and medium-sized enterprise, this forklift can be your right hand to improve work efficiency and reduce costs.

    Specifications

    Specification CPC40
    1 Fuel model diesel
    2 Load capacity kg 4000
    3 Load center mm 500
    4 Lift height mm 3000
    5 Full free lift height mm 0
    6 Fork dimension mm 1070×150×45
    7 Mast tilting angle Deg. 6/12
    8 Min.turning radius mm 2800
    9 Groud clearance mm 135
    10 Overhead guard height mm 2230
    11 Front overhang mm 500
    12 Max travel speed km/h 18.5
    13 Max lift speed mm/s 420
    14 Max.traction power KN 20
    15 Max. gradeability % 20
    16 Total length with fork mm 4105
    17 Total length without fork mm 3035
    18 Total width mm 1400
    19 Mast extended height mm 4270
    20 Mast lowered height mm 2190
    21 Tyres Front 250-15- 12PR
    22 Type Rear 7.00-12-12PR
    23 Wheelbase mm 1900
    24 Tread mm 1160/1065
    25 Service weight Kg 5300
    26 Battery V/Ah 12/100
    27 Engine model  new diesel4D30G31
    28 Engine power kw/r.p.m 36.8
    29 Transmission Mechanical/hydraulic
    30 Work press Mpa 18.5

    Vedio

    Certificate

    Custom Containers FAQs

    Qigao is a welder and flame cutting machines leader in China. We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

    These oxy-fuel flame gas cutting machine are well used in shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.

    Different sizes of the cutting tips, different cutting thickness. First confirm the needed cutting thickness, then select the corresponding cutting nozzles. See below detailed parameter of G02 (acetylene)and G03 (propane)tips.

    TypeNo.Gas cutting
    aperture(mm)
    Cutting
    Thickness(mm)
    Cutting speed
    (mm/min)
    Oxygen
    pressure(Mpa)
    Acetylene
    pressure(Mpa)
    Acetylene
    GO₂
    #000.85-10600-4500.2-0.3>0.03
    #01.010-20480-3800.2-0.30.03
    #11.220-30400-3200.25-0.350.03
    #21.430-50350-2800.25-0.350.03
    #31.650-70300-2400.3-0.40.04
    #41.870-90260-2000.3-0.40.04
    #5290-120210-1700.4-0.60.04
    #62.4120-160180-1400.5-0.80.05
    #72.8160-200150-1100.6-0.90.05
    #83.2200-28090-600.6-1.00.05
    #93.6270-35090-600.7-1.10.05
    #104350-40070-500.7-1.20.06



    Type

    No.

    Gas cutting
    aperture(mm)

    Cutting
    thickness(mm)

    Cutting speed
    (mm/min)

    Oxygen
    pressure(Mpa)

    Acetylene
    pressure(Mpa)

    Propane
    GO3

    #0

    0.7

    5-10

    800-450

    0.2-0.3

    >0.03

    #1

    0.9

    10-20

    480-300

    0.2-0.3

    0.03

    #2

    1.2

    20-35

    400-320

    0.3-0.4

    0.03

    #3

    1.5

    35-60

    350-280

    0.3-0.4

    0.03

    #4

    1.8

    60-90

    300-240

    0.4-0.6

    0.04



    #5

    2.1

    90-130

    260-200

    0.4-0.6

    0.04

    #6

    2.5

    130-180

    220-180

    0.4-0.6

    0.04

    #7

    2.7

    180-250

    200-160

    0.5-0.7

    0.05

    #8

    3.1

    250-330

    180-140

    0.5-0.7

    0.05

    #9

    3.5

    330-380

    130-90

    0.6-0.8

    2.05

    #10

    4.0

    380-450

    90-50

    0.6-0.8

    0.05

    Yes, they can. Our standard machines are with the circling-parts to do extra circling cutting, including their main straight-line cutting function. What’s more, the plasma cutting also is available.

    The main differences between CG1-30A and CG1-30B is the working rail. 30A is with “H” rail, 30B is with hole rail. You can select the wanted rail before confirm the order. The rail is different, the price will be different.

    MIG welders, TIG welders, MMA welders, hand spot welding machines, welding carriage and portable spot welding machines, stud welding machines and so on.

    What is the warranty time for welding and cutting machines.
