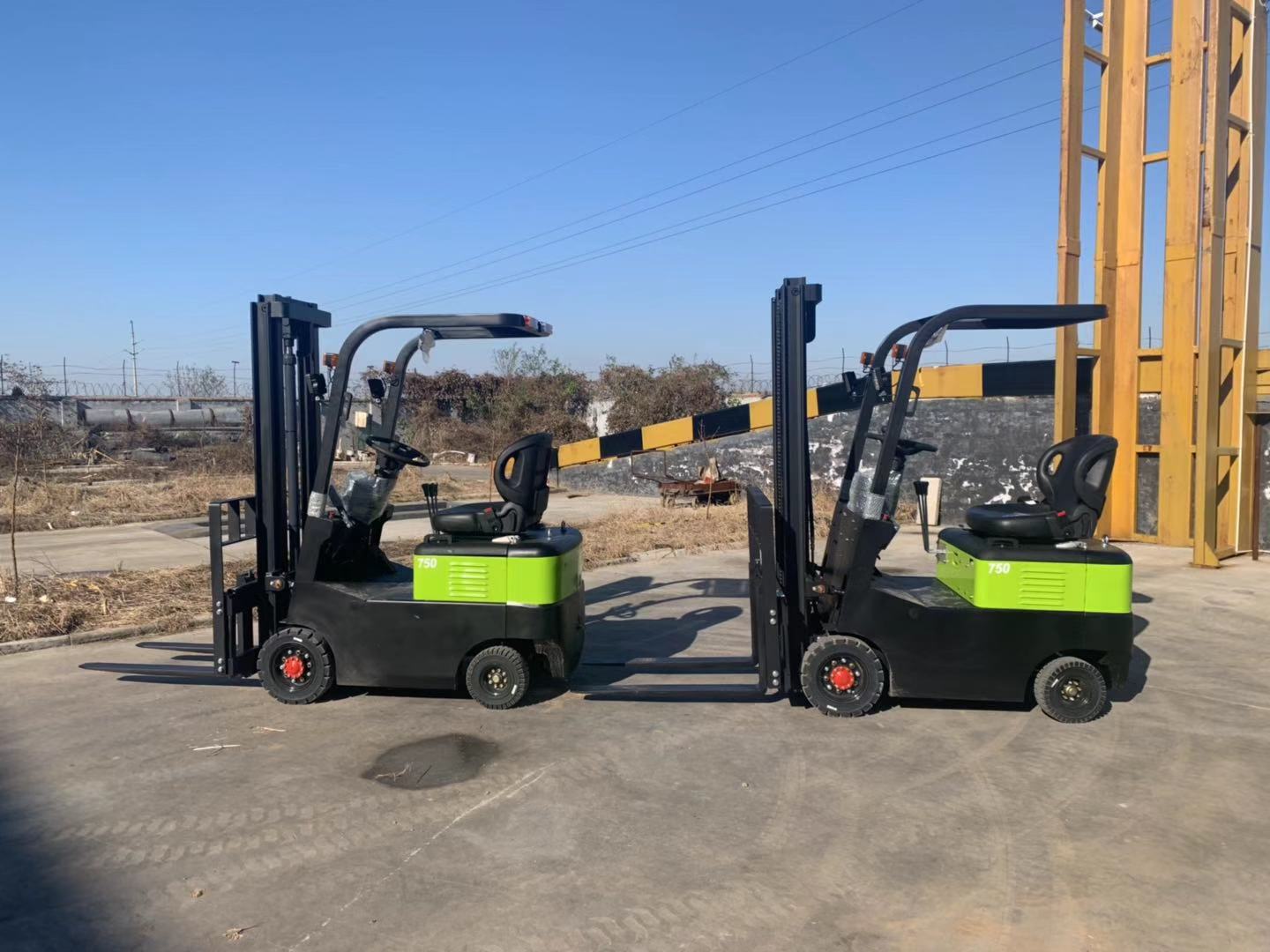

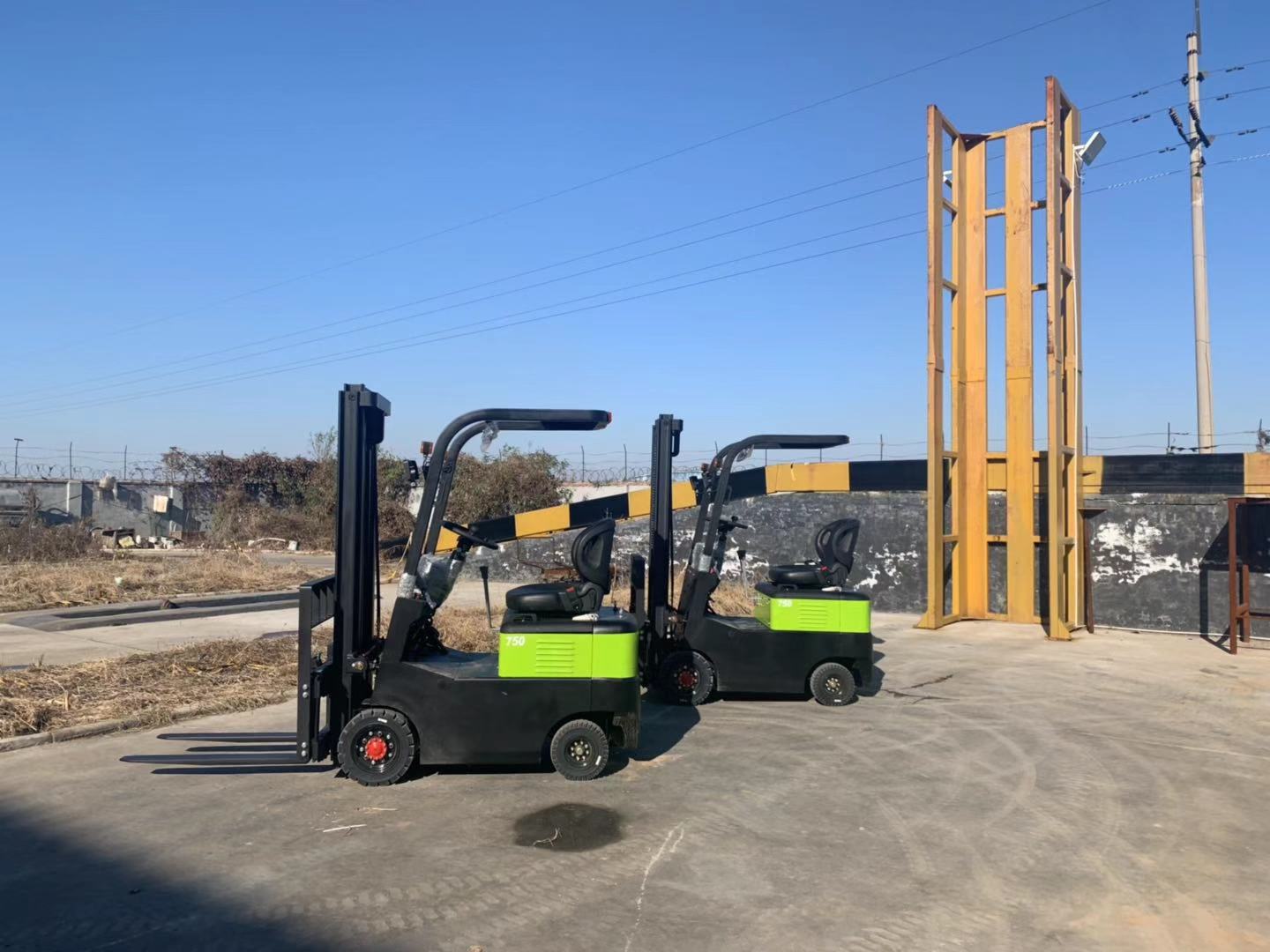

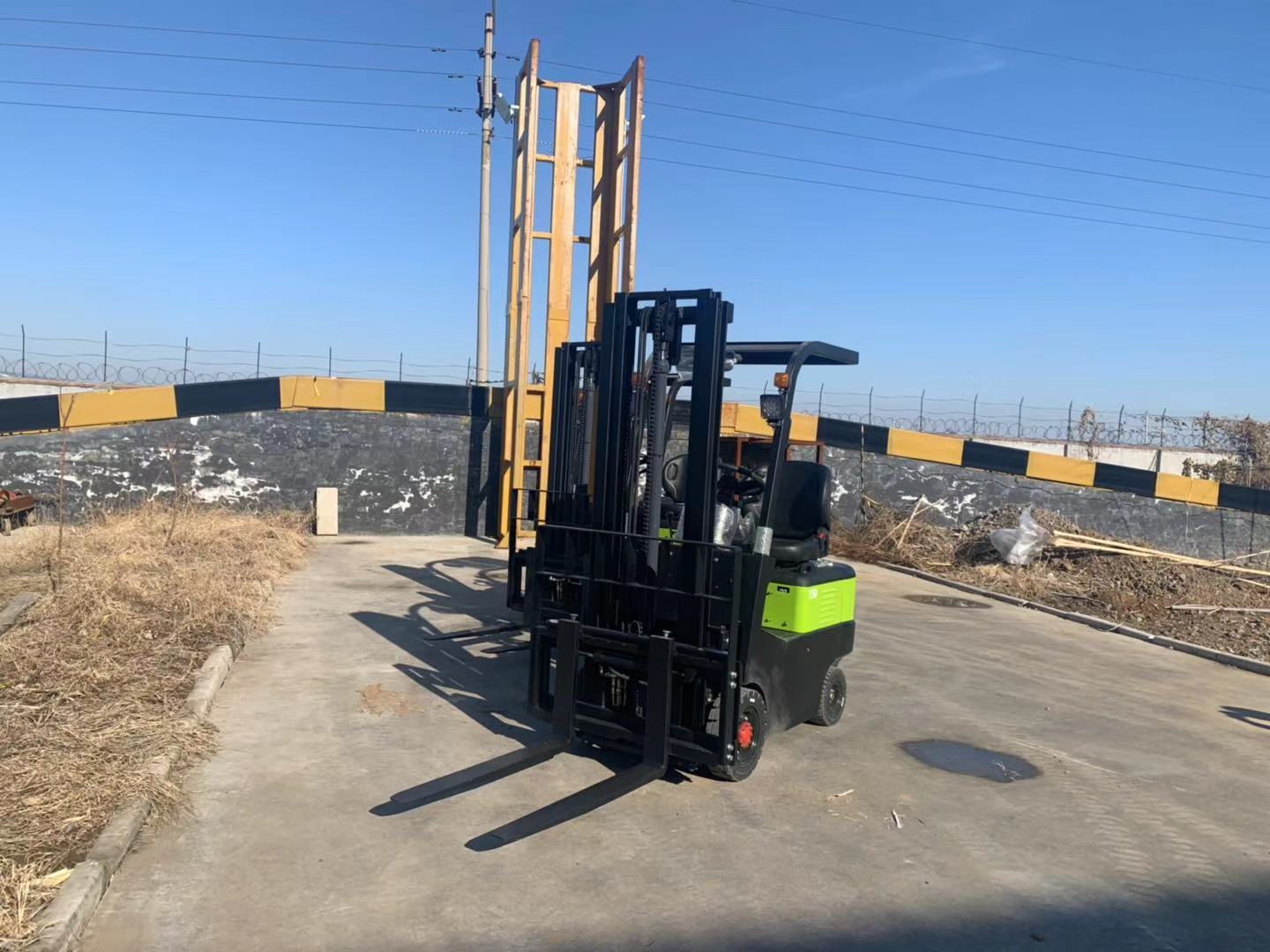

Electric Forklift 750

  • Carrying capacity: 7.5 tons
  • Drive mode: electric
  • Transmission mode: motor drive
  • Battery Type: High-performance lithium battery (or other type of battery)
  • Speed: Optional according to configuration

GET INSTANT QUOTE

    FEATURES

    Product Details

    Description

    The Electric Forklift 750 is an electric forklift designed for heavy material handling and is the tool of choice for industrial, warehousing and logistics due to its outstanding performance, high efficiency and environmental features. The forklift not only has a strong carrying capacity, but also integrates advanced electric technology and humane design concept to meet a variety of complex and heavy handling needs.

    Strong load capacity

    The Electric Forklift 750 has a load capacity of up to 7.5 tons, which can easily handle a variety of heavy material handling tasks, such as large cargo, machinery and equipment.

    Efficient electric drive

    The advanced electric drive system provides strong and stable power for the forklift to ensure that the handling task can be efficiently and reliably completed in a variety of working environments. Its high energy conversion rate and low energy consumption make this forklift maintain excellent performance during long working hours.

    Environmental protection and energy saving

    Electric drive mode to achieve zero emissions, low noise operation, not only in line with environmental requirements, but also help reduce energy consumption and operating costs. At the same time, its efficient energy utilization also saves a lot of energy costs for enterprises.

    Safety and reliability

    The forklift is equipped with multiple safety protection devices, such as emergency braking, overload protection, anti-roll protection, etc., to ensure the safety of operators and cargo during handling. At the same time, its rugged structure and high-quality material selection ensure the long-term stable operation of the forklift.

    Ease of operation

    The Electric Forklift 750 adopts a user-friendly design, the operation interface is simple and easy to understand, and the operator can quickly pick up and master the functions. Its intelligent control system can monitor the working state of the forklift in real time, and automatically adjust the operating parameters according to the needs, making the operation more simple and flexible.

    Comfortable seats

    ergonomically designed seats provide a comfortable driving experience for the operator.

    Operation interface

    Simple and intuitive operation interface, so that operators can easily get started, quickly grasp the functions.

    Easy maintenance

    The design of the electric forklift takes into account easy maintenance and maintenance factors, reducing maintenance costs and time.

    Electric Forklift 750 is widely used in the following areas:

    Warehouse management

    It is used for loading and unloading, stacking and transporting heavy goods in large warehouses to improve the efficiency of warehouse operations.

    Logistics center

    Fast and efficient sorting and distribution of large goods in the logistics center.

    Manufacturing

    Handling large parts and raw materials on heavy production lines to ensure smooth production processes.
    The Electric Forklift 750 is the ideal choice for heavy duty material handling due to its powerful load carrying capacity, efficient electric drive system, environmental and energy saving features and user-friendly design. We are committed to providing our customers with quality products and services to help them achieve more efficient and environmentally friendly material handling solutions.

    Specifications

    Model   CPD750
     Power type   Lead acid Battery
    Rated load

    KG

    750
     Load center distance

    mm

    400
     Driving type   seat




    Length

     With fork L1















































    mm

    2592
     Without fork    L2 1652
    Whole Width B 940






    Height

     Mast lowered height H1 1680
    Overhead guard height  H2 1950
    Max working  Height   gH3 3320
    Distance from seat to top light L3 970
    Wheel base L4 1020
    Front  overhang Y 327
    Back  overhang L5 313
    Front wheel tread R 840
    Back wheel tread P 741
    Min Floor clearance F 90
    Max lifting height H 2500
    Free lifting height H4 0
    Fork    changing S 820/190
    Min Turning radius WA 1800
    Min driiving width RA 2000





    Tilt angel a/β (°) 6°/12°
    Max lifting speed without goods

    mm/s

    300
    Max lifting speed with full goods 220
    Max speed without goods

    Km/h

    12
    Max speed with full goods 11
    Max climbing angle ≤10
    Whole weight Kg 1520
    Driving Wheel   2x/2
    Type model   solid tyre
    Front Tyre   15×4 1/2-8
    Rear Tyre   3.50-5
     Hand Brake   Hydraulic pedal
    Brake type   hand type
     Battery Volt/ capacity V/Ah 48/140
    Driving motor power



    Kw

    AC4
     pump power DC4

    Vedio

    Certificate

    Custom Containers FAQs

    Qigao is a welder and flame cutting machines leader in China. We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

    These oxy-fuel flame gas cutting machine are well used in shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.

    Different sizes of the cutting tips, different cutting thickness. First confirm the needed cutting thickness, then select the corresponding cutting nozzles. See below detailed parameter of G02 (acetylene)and G03 (propane)tips.

    TypeNo.Gas cutting
    aperture(mm)
    Cutting
    Thickness(mm)
    Cutting speed
    (mm/min)
    Oxygen
    pressure(Mpa)
    Acetylene
    pressure(Mpa)
    Acetylene
    GO₂
    #000.85-10600-4500.2-0.3>0.03
    #01.010-20480-3800.2-0.30.03
    #11.220-30400-3200.25-0.350.03
    #21.430-50350-2800.25-0.350.03
    #31.650-70300-2400.3-0.40.04
    #41.870-90260-2000.3-0.40.04
    #5290-120210-1700.4-0.60.04
    #62.4120-160180-1400.5-0.80.05
    #72.8160-200150-1100.6-0.90.05
    #83.2200-28090-600.6-1.00.05
    #93.6270-35090-600.7-1.10.05
    #104350-40070-500.7-1.20.06



    Type

    No.

    Gas cutting
    aperture(mm)

    Cutting
    thickness(mm)

    Cutting speed
    (mm/min)

    Oxygen
    pressure(Mpa)

    Acetylene
    pressure(Mpa)

    Propane
    GO3

    #0

    0.7

    5-10

    800-450

    0.2-0.3

    >0.03

    #1

    0.9

    10-20

    480-300

    0.2-0.3

    0.03

    #2

    1.2

    20-35

    400-320

    0.3-0.4

    0.03

    #3

    1.5

    35-60

    350-280

    0.3-0.4

    0.03

    #4

    1.8

    60-90

    300-240

    0.4-0.6

    0.04



    #5

    2.1

    90-130

    260-200

    0.4-0.6

    0.04

    #6

    2.5

    130-180

    220-180

    0.4-0.6

    0.04

    #7

    2.7

    180-250

    200-160

    0.5-0.7

    0.05

    #8

    3.1

    250-330

    180-140

    0.5-0.7

    0.05

    #9

    3.5

    330-380

    130-90

    0.6-0.8

    2.05

    #10

    4.0

    380-450

    90-50

    0.6-0.8

    0.05

    Yes, they can. Our standard machines are with the circling-parts to do extra circling cutting, including their main straight-line cutting function. What’s more, the plasma cutting also is available.

    The main differences between CG1-30A and CG1-30B is the working rail. 30A is with “H” rail, 30B is with hole rail. You can select the wanted rail before confirm the order. The rail is different, the price will be different.
