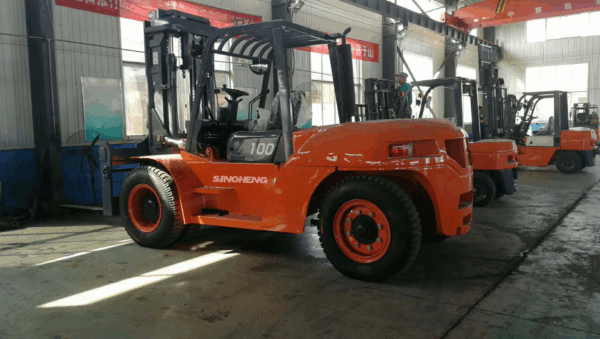

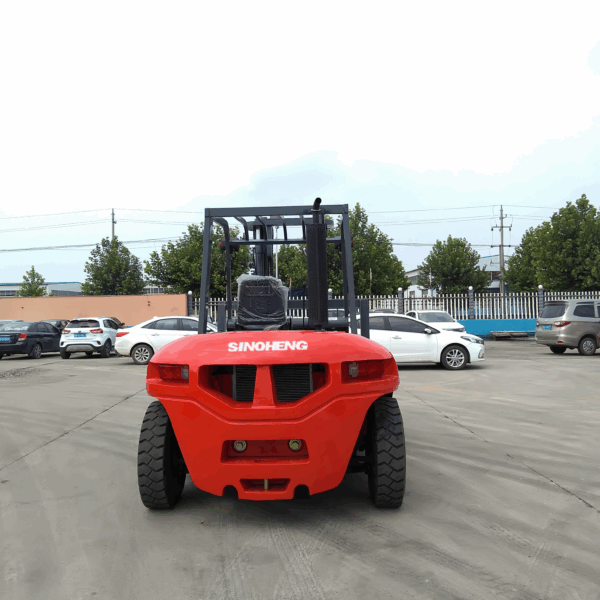

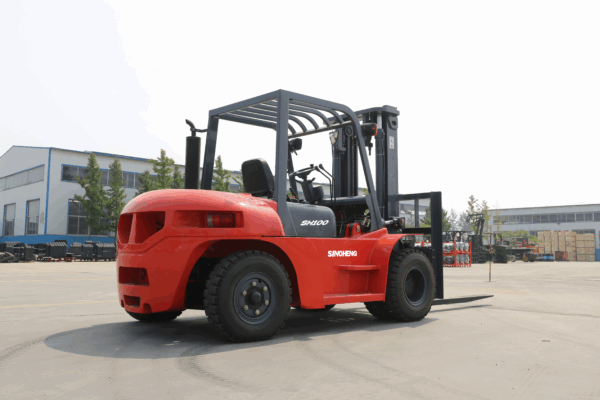

Diesel Forklift 10.0tons

  • Carrying capacity: 10.0 tons
  • Engine type: Efficient, low-emission diesel engine
  • Maximum lifting height: depends on the specific model
  • Forward/backward speed: depends on the model
  • Tire type: The use of wear-resistant, anti-skid solid tires, adapt to various terrain and climate conditions
Category

GET INSTANT QUOTE

    FEATURES

    Product Details

    Description

    Diesel Forklift 10.0tons is an efficient and stable diesel-powered forklift designed for medium to heavy material handling. Its carrying capacity is strong, easy to operate, suitable for warehouses, logistics centers, docks, factories and other places.

    Powerful power

    Equipped with efficient diesel engine, providing strong power output, to ensure that in a variety of working environments can be stable and efficient to complete the handling task.

    High load capacity

    the maximum load capacity of 10.0 tons, to meet the handling needs of various medium and heavy materials.

    Stable control

    Advanced hydraulic transmission system and precise control design make the forklift more stable during driving and lifting, reducing the risk of cargo damage.

    Energy efficient

    Optimized fuel system and energy efficient design to reduce fuel consumption and operating costs.

    Safety and comfort

    equipped with multiple safety protection devices, such as emergency braking, overload protection, etc., to ensure the safety of the operator. At the same time, comfortable seats and user-friendly operation interface improve the operating experience.

    In short, the Diesel Forklift 10.0tons is an efficient, stable and reliable diesel-powered forklift for a wide range of medium and heavy material handling scenarios. We are committed to providing customers with quality products and services to meet the actual needs of customers.

    Specifications

    Specification CPCD100
    1 Fuel model new diesel
    2 Load capacity kg 10000
    3 Load center mm 600
    4 Lift height mm 3000
    5 Full free lift height mm 220
    6 Fork dimension mm 1220×175×80
    7 Mast tilting angle Deg. 6/12
    8 Min.turning radius mm 4150
    9 Groud clearance mm 250
    10 Overhead guard height mm 2560
    11 Front overhang mm 710
    12 Max travel speed km/h 26
    13 Max lift speed mm/s 400
    14 Max.traction power KN 52
    15 Max. gradeability % 20
    16 Total length with fork mm 5565
    17 Total length without fork mm 4345
    18 Total width mm 2260
    19 Mast extended height mm 4420
    20 Mast lowered height mm 2840
    21 Tyres Front 9.00-20-14PR
    22 Type Rear 9.00-20-14PR
    23 Wheelbase mm 2800
    24 Tread mm 1600/1700
    25 Service weight Kg 12500
    26 Battery V/Ah (12/100)x2
    27 Engine model Sitchai 4DF3
    28 Engine power kw/r.p.m 85
    29 Transmission hydraulic
    30 Work press Mpa 20

    Vedio

    Certificate

    Custom Containers FAQs

    Qigao is a welder and flame cutting machines leader in China. We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

    These oxy-fuel flame gas cutting machine are well used in shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.

    Different sizes of the cutting tips, different cutting thickness. First confirm the needed cutting thickness, then select the corresponding cutting nozzles. See below detailed parameter of G02 (acetylene)and G03 (propane)tips.

    TypeNo.Gas cutting
    aperture(mm)
    Cutting
    Thickness(mm)
    Cutting speed
    (mm/min)
    Oxygen
    pressure(Mpa)
    Acetylene
    pressure(Mpa)
    Acetylene
    GO₂
    #000.85-10600-4500.2-0.3>0.03
    #01.010-20480-3800.2-0.30.03
    #11.220-30400-3200.25-0.350.03
    #21.430-50350-2800.25-0.350.03
    #31.650-70300-2400.3-0.40.04
    #41.870-90260-2000.3-0.40.04
    #5290-120210-1700.4-0.60.04
    #62.4120-160180-1400.5-0.80.05
    #72.8160-200150-1100.6-0.90.05
    #83.2200-28090-600.6-1.00.05
    #93.6270-35090-600.7-1.10.05
    #104350-40070-500.7-1.20.06



    Type

    No.

    Gas cutting
    aperture(mm)

    Cutting
    thickness(mm)

    Cutting speed
    (mm/min)

    Oxygen
    pressure(Mpa)

    Acetylene
    pressure(Mpa)

    Propane
    GO3

    #0

    0.7

    5-10

    800-450

    0.2-0.3

    >0.03

    #1

    0.9

    10-20

    480-300

    0.2-0.3

    0.03

    #2

    1.2

    20-35

    400-320

    0.3-0.4

    0.03

    #3

    1.5

    35-60

    350-280

    0.3-0.4

    0.03

    #4

    1.8

    60-90

    300-240

    0.4-0.6

    0.04



    #5

    2.1

    90-130

    260-200

    0.4-0.6

    0.04

    #6

    2.5

    130-180

    220-180

    0.4-0.6

    0.04

    #7

    2.7

    180-250

    200-160

    0.5-0.7

    0.05

    #8

    3.1

    250-330

    180-140

    0.5-0.7

    0.05

    #9

    3.5

    330-380

    130-90

    0.6-0.8

    2.05

    #10

    4.0

    380-450

    90-50

    0.6-0.8

    0.05

    Yes, they can. Our standard machines are with the circling-parts to do extra circling cutting, including their main straight-line cutting function. What’s more, the plasma cutting also is available.

    The main differences between CG1-30A and CG1-30B is the working rail. 30A is with “H” rail, 30B is with hole rail. You can select the wanted rail before confirm the order. The rail is different, the price will be different.

    MIG welders, TIG welders, MMA welders, hand spot welding machines, welding carriage and portable spot welding machines, stud welding machines and so on.

    What is the warranty time for welding and cutting machines.
