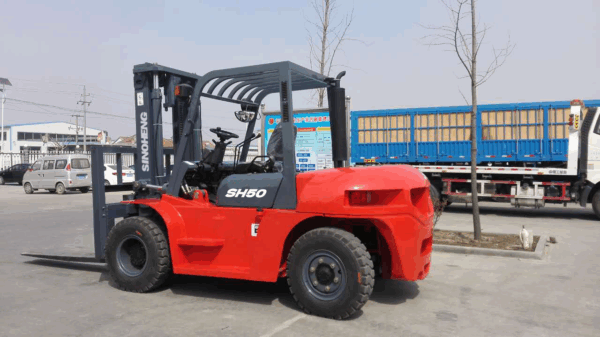

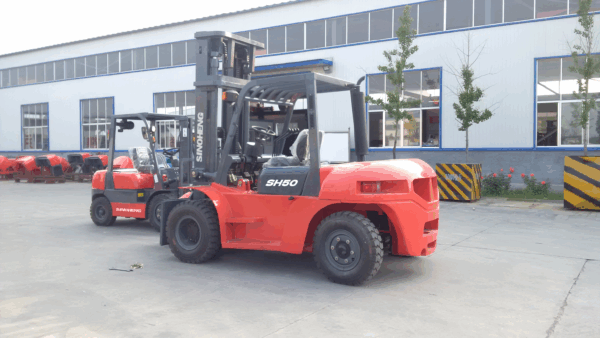

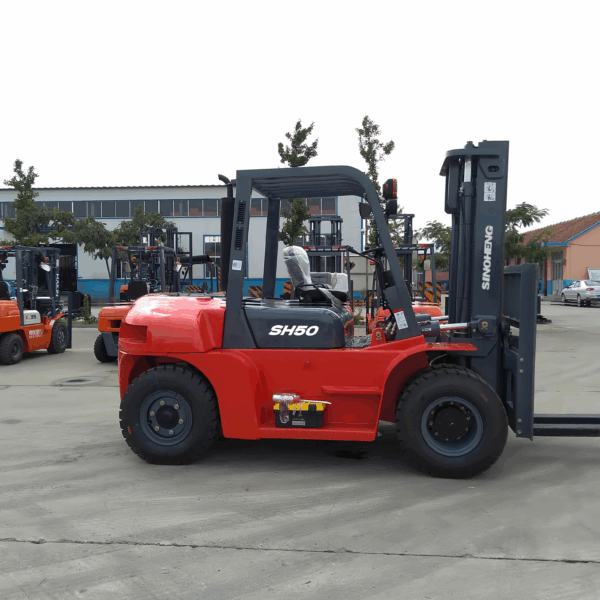

Diesel Forklift 5.0tons



  • Load capacity: 5000kg
  • Engine type: High efficiency diesel engine
  • Fuel type: Diesel
  • Tyre type: Heavy duty wear-resistant tyre



Category

GET INSTANT QUOTE

    FEATURES

    Product Details

    Description

    Diesel Forklift 5.0tons is a diesel-powered forklift with great power and excellent handling capability. Its 5-ton load capacity makes it ideal for handling heavy materials and large cargoes. Whether in warehouses, factories or docks, this forklift provides efficient and stable handling solutions.

    Powerful power

    Equipped with efficient diesel engine, providing strong power output, to ensure that in a variety of complex environments can easily cope with a variety of handling tasks.

    Energy efficiency

    Through advanced fuel injection technology and optimized power matching, efficient fuel utilization is achieved and operating costs are reduced.

    Stable and reliable

    Robust body structure and stable chassis design ensure smooth handling, reducing cargo damage and operational risks.

    Easy operation

    equipped with humanized operation handle and control system, so that operators can easily master the operation skills, improve work efficiency.

    Strong adaptability

    Different lifting heights and fork lengths can be customized according to customer needs to meet diversified handling needs.

    In summary, Diesel Forklift 5.0tons is the ideal choice for handling heavy materials and large cargo due to its power, energy efficiency, reliability and ease of operation. We look forward to your consultation and cooperation to promote the progress of material handling.

    Specifications

    Specification CPCD50
    1 Fuel model diesel
    2 Load capacity kg 5000
    3 Load center mm 500
    4 Lift height mm 3000
    5 Full free lift height mm 0
    6 Fork dimension mm 1070×150×50
    7 Mast tilting angle Deg. 6/12
    8 Min.turning radius mm 3050
    9 Groud clearance mm 140
    10 Overhead guard height mm 2290
    11 Front overhang mm 570
    12 Max travel speed km/h 25
    13 Max lift speed mm/s 430
    14 Max.traction power KN 23
    15 Max. gradeability % 18
    16 Total length with fork mm 4520
    17 Total length without fork mm 3300
    18 Total width mm 1480
    19 Mast extended height mm 4300
    20 Mast lowered height mm 2190
    21 Tyres Front 300-15-20PR
    22 Type Rear 700-12-12PR
    23 Wheelbase mm 2200
    24 Tread mm 1180/1190
    25 Service weight Kg 6900
    26 Battery V/Ah 12/80x2
    27 Engine model new diesel 4D35
    28 Engine power kw/r.p.m 60
    29 Transmission Mechanical/hydraulic diesel
    30 Work press Mpa 18.5
